How Dual Spectral Thermal Camera Systems Work?

How Dual Spectral Thermal Camera Systems Work?

Jul 26,2023

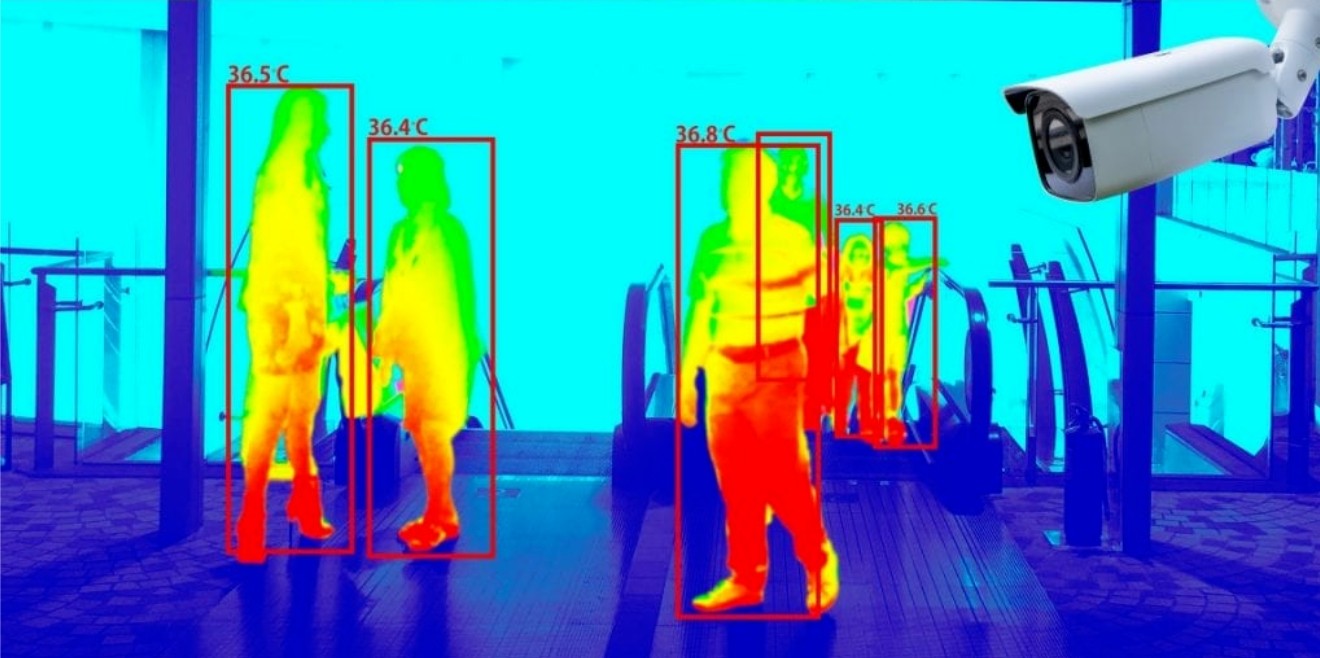

dual-spectral thermal imaging cameras
Thermal imaging cameras have revolutionized industries by allowing us to see and interpret the world through heat signatures. They detect and visualize temperature differences invisible to the human eye. Advances in thermal imaging technology in recent years have led to the development of dual-spectral thermal imaging camera systems that provide more comprehensive and detailed thermal information. In this article, we'll explore how dual-spectral thermal imaging cameras work, their benefits, applications, and factors to consider when choosing one.

Understanding Thermal Imaging and Spectral Bands

Before diving into how a dual-spectral camera works, let's first understand the concepts of thermal imaging and spectral banding. Thermal imaging relies on detecting infrared radiation emitted by objects based on their temperature. The captured data is then converted into an image, often called a thermogram. The different spectral bands used in thermal imaging cameras have different degrees of sensitivity to temperature differences.

Advantages of Dual Spectral Technology

- Enhanced Image Interpretation

Dual-spectrum thermal imaging cameras provide more information about the scene, enhancing image interpretation. By overlaying data from the two spectral bands, the resulting image can reveal details that single-band thermal imaging cameras might miss.

- Improved Detection and Recognition

The combination of LWIR and MWIR bands enables dual-spectral cameras to detect and identify objects with greater precision. This is especially useful in situations where identifying small temperature differences is critical.

- Improved Temperature Measurement Accuracy

Dual-spectral cameras can improve temperature measurement accuracy. By cross-referencing data from two spectral bands, these cameras can reduce errors caused by factors such as changes in emissivity.

How Dual Spectral Thermal Cameras Work?

Dual-spectral thermal imaging cameras are advanced devices that operate on the principles of thermal imaging and utilize two separate spectral bands to capture and analyze thermal data. Let's take a deep dive into how these innovative cameras work:

Thermal Imaging Basics: To understand how a dual-spectrum thermal imaging camera works, you must have a basic knowledge of thermal imaging. All objects with a temperature above absolute zero emit infrared radiation. A thermal imaging camera detects this radiation and converts it into a visible image called a thermogram. The intensity of the emitted radiation is directly related to the temperature of the object.

Dual Sensor Configuration: The main differentiating feature of a Dual Spectral camera is its dual sensor configuration. These cameras consist of two separate sensors, each sensitive to a different spectral band. The most common combination is the long-wave infrared (LWIR) and mid-wave infrared (MWIR) bands.

Spectral Band Sensitivity: Each spectral band has a different sensitivity to temperature changes and specific materials. The LWIR band is ideal for detecting differences in low temperatures and is often used in applications such as thermal measurements and building inspections. On the other hand, the MWIR frequency band is more suitable for scenarios that require high-temperature accuracy, such as industrial process monitoring.

Simultaneous Data Capture: At runtime, the dual-spectral camera's two sensors simultaneously capture thermal data of the observed scene. Each sensor records the intensity of infrared radiation emitted by an object in its specific spectral range.

Image Fusion Technology: After data capture, information from both sensors is processed using advanced image fusion technology. These techniques combine data from two spectral bands to create a single, comprehensive thermal image. By overlaying the data, the resulting imagery can represent thermal patterns in the scene in greater detail and accuracy.

Data Processing and Analysis: The fused thermal images are further data processed and analyzed. This step involves interpreting temperature changes, identifying anomalies, and extracting valuable thermal data. Dual-spectral cameras often come with built-in software that facilitates real-time analysis and interpretation.

Enhanced Thermal Information: The combination of data from two different spectral bands enhances the camera's ability to effectively detect and differentiate temperature changes. This detailed thermal information is especially useful in a variety of applications, including security, industrial inspection, and medical thermography.
Factors to Consider When Selecting a Dual Spectral Thermal Imaging Camera

When selecting a dual-spectrum thermal imaging camera system, there are several important factors to consider to ensure you choose the right device for your specific needs:

Resolution and Image Quality: The resolution of a thermal imager determines the level of detail in the captured image. Higher-resolution cameras provide more precise and clearer thermal data, enabling better analysis and decision-making.

Spectral Band Coverage: Different dual-spectral cameras cover different spectral bands, such as long-wave infrared (LWIR) and mid-wave infrared (MWIR). The choice of spectral band affects the camera's ability to detect specific temperature changes and thermal patterns. Consider application requirements when selecting the appropriate spectral band coverage.

Integration and Connectivity: Check to see if a bispectral camera can be seamlessly integrated into your existing system or equipment. Make sure it offers a compatible connection option, such as USB, Ethernet, or Wi-Fi, depending on how you plan to use the camera and transfer data.

Temperature Range: Each dual-spectrum camera has a specific temperature range that it can detect accurately. Make sure that the temperature range of the camera matches the expected temperature variation in the application. Some cameras have extended temperature ranges for special purposes.

Frame Rate: The frame rate indicates how many thermal images the camera can capture per second. Higher frame rates are critical for applications involving fast-moving objects or dynamic thermal events, as it ensures that no critical data is missed.

Environmental Rating: Consider the environmental conditions in which the dual-spectrum camera will be used. Look for cameras with proper IP (Ingress Protection) or NEMA (National Electrical Manufacturers Association) ratings to ensure they can withstand dust, moisture, and other harsh conditions.

Data Storage and Analysis: Check the camera's data storage capabilities and whether it allows real-time analysis. Some cameras offer built-in storage, while others rely on external storage devices. Also, consider whether the camera provides data analysis software or supports integration with third-party software for data processing.

Cost Considerations: The cost of a dual-spectrum thermal imaging camera varies based on its features and capabilities. Determine your budget and look for a camera within that range that meets your requirements. While cost is critical, make sure you prioritize camera performance and suitability for your application.

Ease of Use and Portability: User-friendliness is critical, especially when multiple operators are using the camera. Consider the camera's interface, controls, and menu navigation. Also, if portability is important, choose a lightweight and compact camera design.

Warranty and Support: Look for cameras with comprehensive warranties and solid customer support. A good warranty can give you peace of mind and the assurance of help should anything go wrong with your camera.

Dual-spectrum thermal imaging camera systems significantly enhance our ability to interpret and utilize thermal data. With the combined benefits of higher precision, better image interpretation, and advanced applications, these cameras have found their way into various industries. As the technology continues to advance, we can expect even more exciting developments in the field of dual-spectral thermal imaging.

The above briefly introduces the working principle and advantages of the dual-spectrum thermal imager. If you want to buy a dual-spectrum thermal imager, please contact us.
